How to Install macOS Mojave on VMware on Windows

 In this article, you will learn How to Install macOS Mojave on VMware on Windows. As you know that macOS Mojave is the latest operating system released by Apple. It is the 10.14 version. There are dozens of amazing features in the recent release of macOS Mojave. For example, you get better performance, security and beautiful UI from the best out of the best developer and designers. However, if you are going to install the operating system in your machine. First, you have to test and check either, it is worth installing in your machine. Therefore, the best platform to test macOS Mojave is either VirtualBox or VMWare.

How to Install macOS Mojave on VMware on Windows

we have already install macOS Mojave 10.14 on VirtualBox on Windows 10. And Provided all the setting as well as the troubleshooting. But, in this article, I am going to guide you to install MacOS Mojave on VMware Windows 10. And the easiest way to install it just needs some easy steps you have to follow that.

How to Install Android P on PC Using Android Studio

How to Install macOS Mojave on VMware on Windows

Required Files:

  1. Download MacOS Mojave 10.14
  2. VMware free download
  3. patch tool
  4. VM tool

How to Install macOS Mojave on VMware on Windows

Step 1: First, you have to extract the virtual image file. However, you have already found that the file is compressed. Therefore, you need third party software to extract the virtual image file.

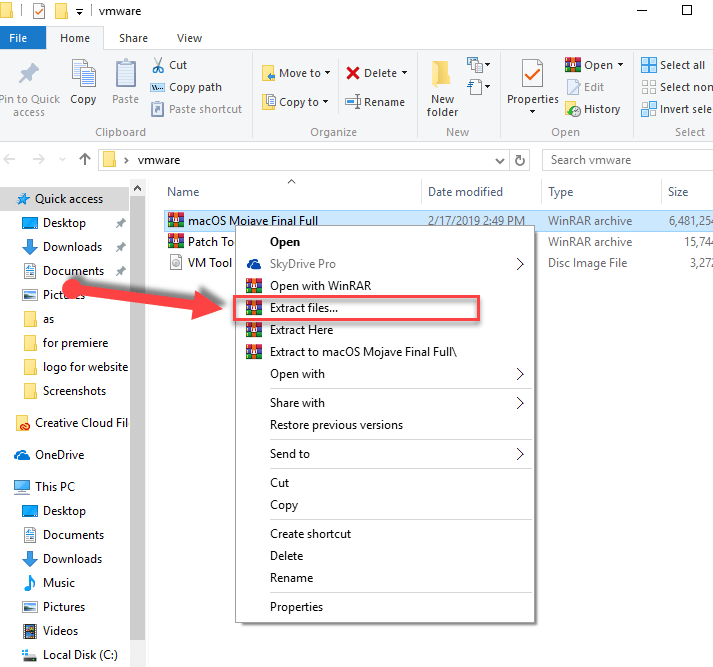

Step 2: After downloading and installing. You should install the software in your windows 10. The procedure of installing Winrar is simple like all other software. Therefore, next, you are going to extract the file. For that, you have to go to the folder containing the virtual image file and right-click on the Rar file. Then select Extract Here.
How to Install macOS Mojave 10.14 on VMware Windows 10
click on extract here

Step 3: Install VMware Workstation from the given link. When you have downloaded the software. Next, you are going to install it with a simple wizard. Since the installation is simple. Therefore, you will not find any difficulties to configure the software.

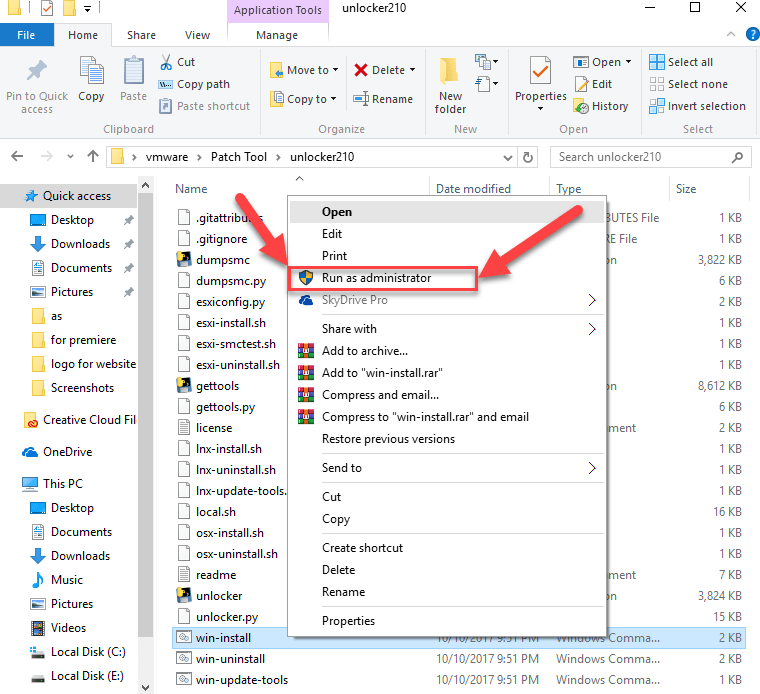

Step 4: Patch For VMware WorkStation. Download patch tool from the given link. After that, you have to extract the folder. Moreover, you have to open the folder. There you will get the win-install file. Right, Click on it. And click on Run as administrator.

click run as administrator

How to Install macOS Mojave on VMware on Windows

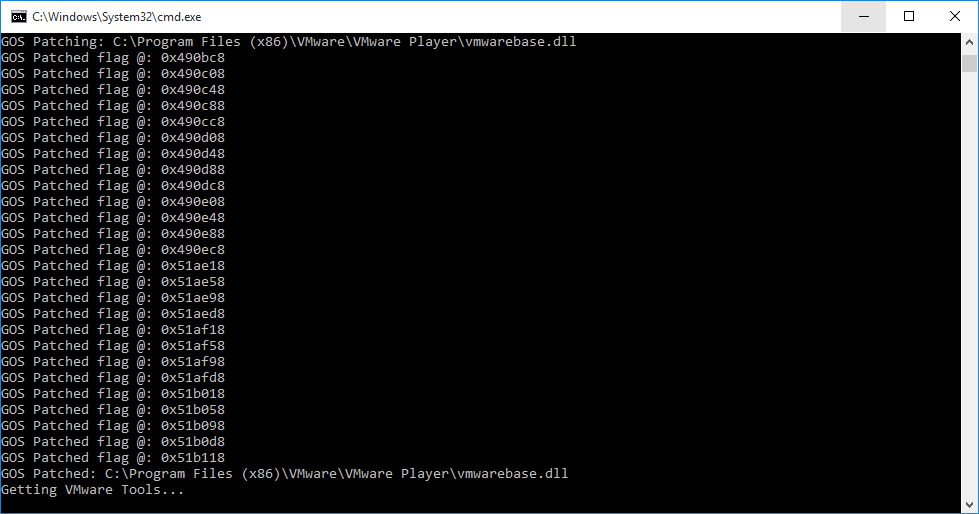

Step 5: After that clicking on that then you will see a black window will start to configure. Let it completes. Then you will start making New Virtual Machine.


How to Install macOS Mojave on VMware on Windows

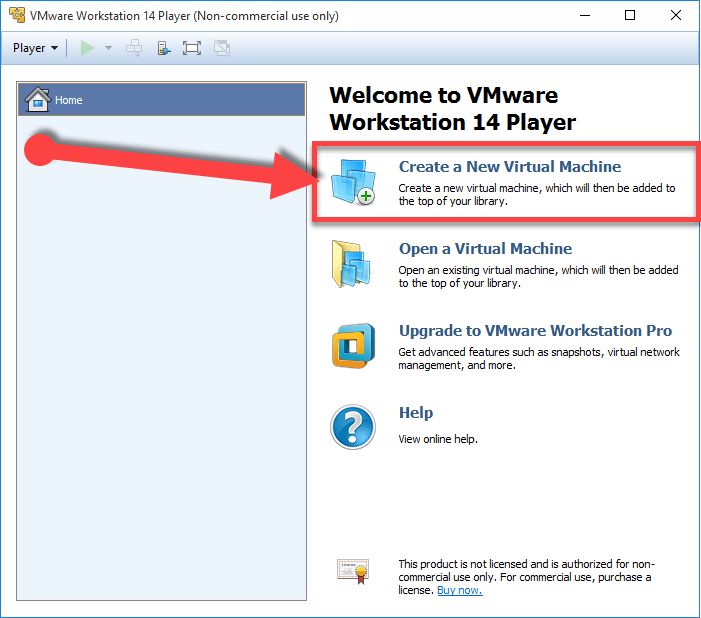

Step 7: Now open VMware Workstation and click on the “Create a New Virtual Machine

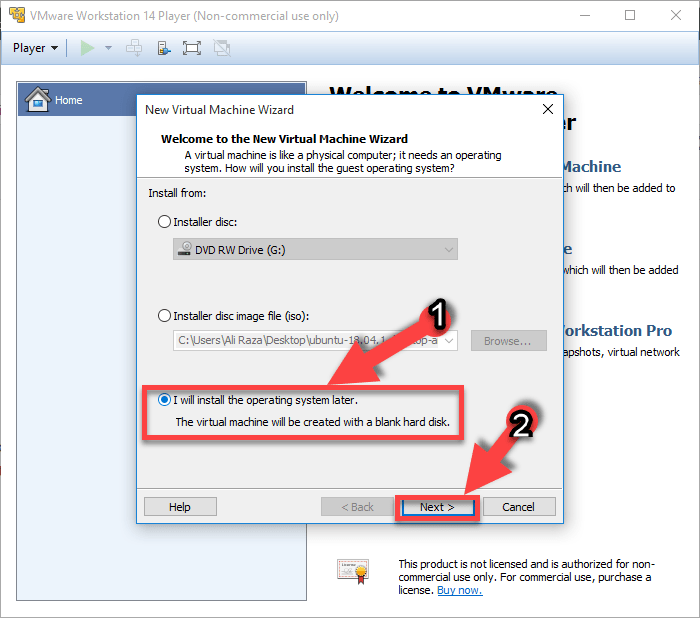

Step 8: Then you will get the New Virtual Machine Wizard. Therefore, you have to click on I will install the operating system Later. And Then click on the Next.

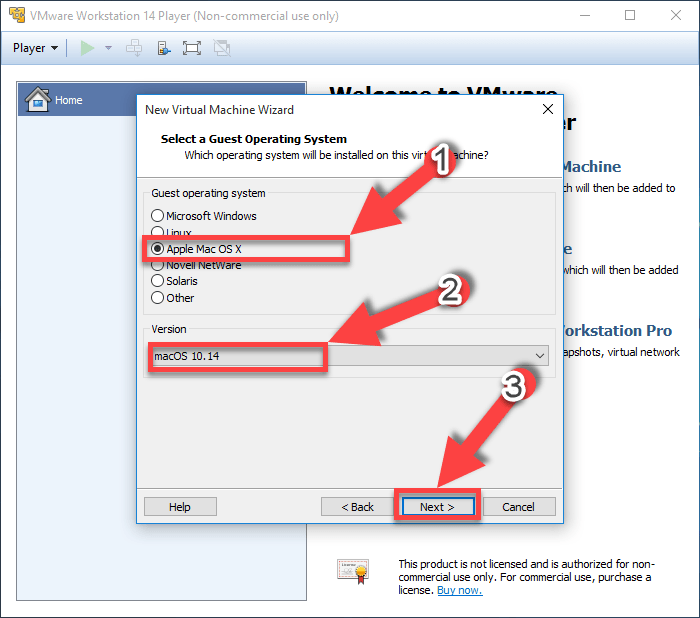

Step 9: In this step, you will get Select a Guest Operating System. You have to select Apple macOS X. In the version Selection, you have to click on macOS 10.14. Then Click on Next.

click next

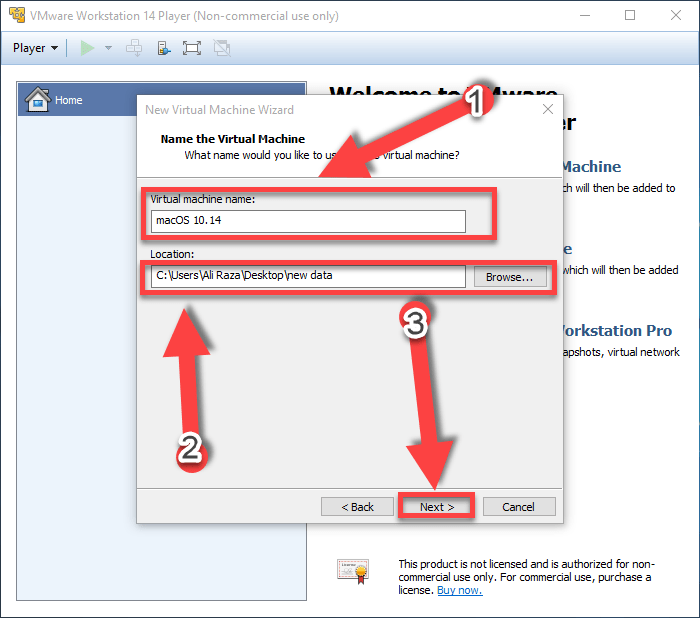

Step 10: Then you have to give a name to your virtual machine whatever you want. And select a location where you want to save all data. Then click on the next option.

give a name to your virtual machine

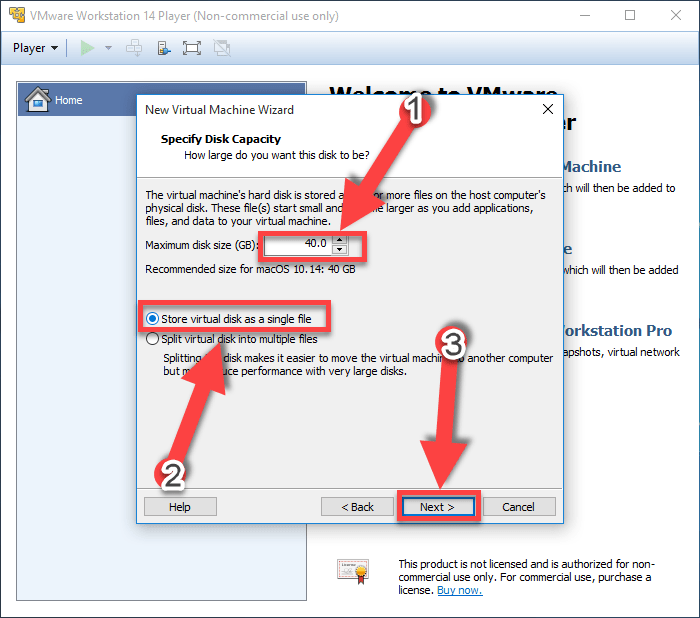

Step 11: Next you will get specific disk capacity. You have to leave it as a default 40.0 GB. Then select Store virtual disk as a single file. Finally, click on Next

click next

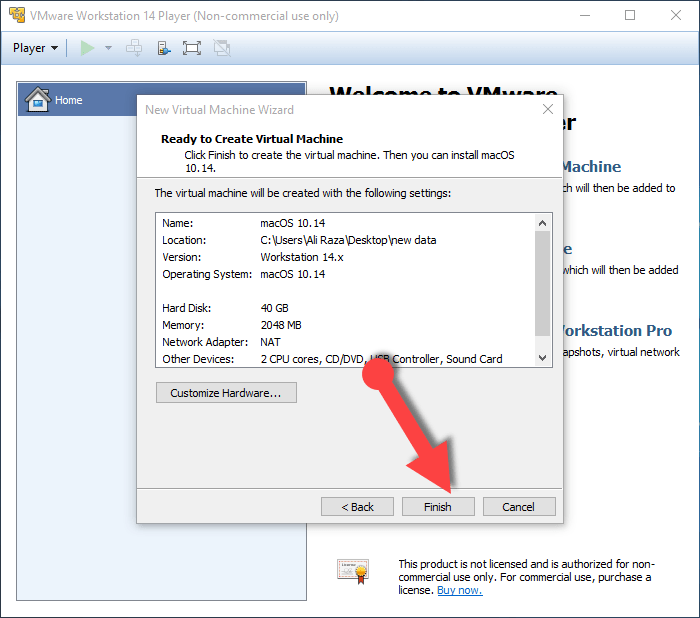

Step 12: The VMware is ready to create a virtual machine. Therefore, you have to click Finish to create the virtual machine. Then you can install macOS 10.14 Mojave. However, you can also see all the setting which you have already set up in the wizard.

click finish

How to Install macOS Mojave on VMware on Windows

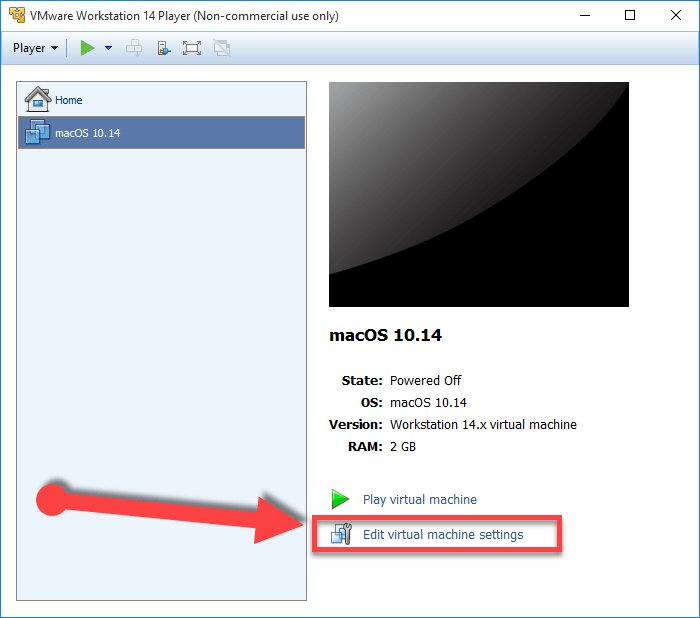

Step 13: After creating a virtual machine, we are going to configure VMware correctly to run macOS Mojave 10.14. For that, you have to click on “Edit virtual machine setting“.

edit virtual machine setting

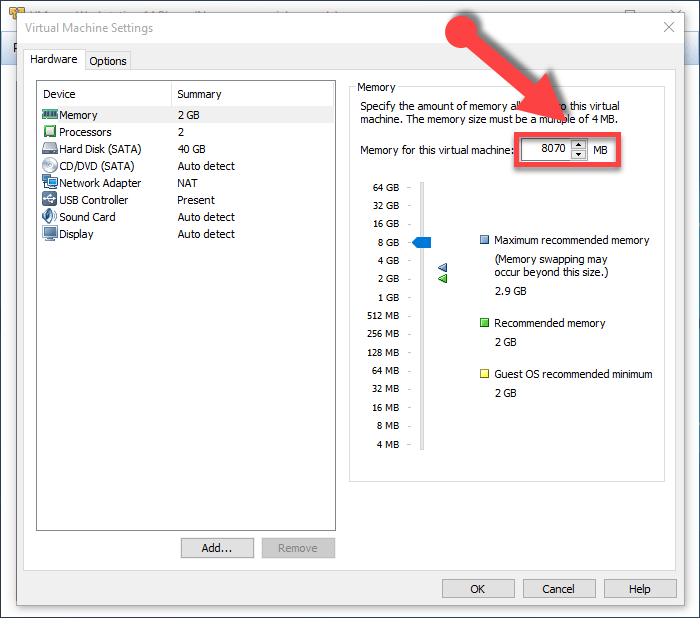

Step 14: Memory: Specify the amount of memory allocated to this virtual machine. I recommend that you have to provide you 50% plus of your memory to a virtual machine. Because it will run very smoothly.

set a memory

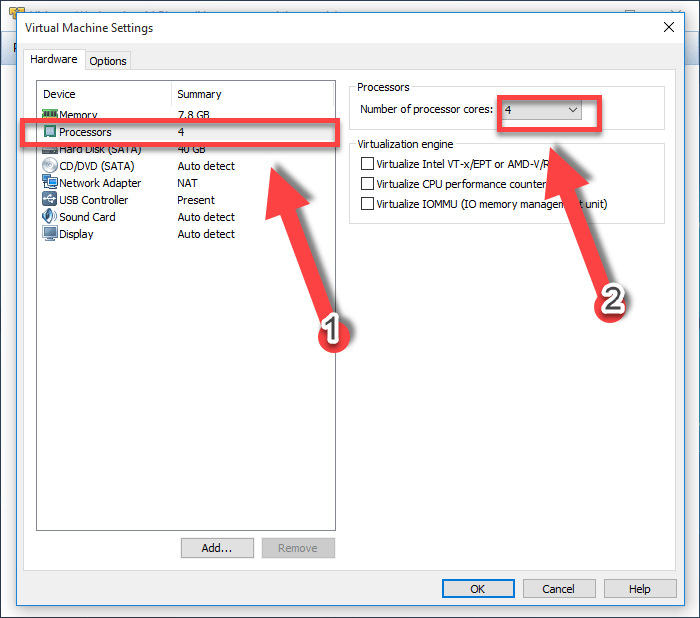

Step 15: Go to processor option then Select the number of the core in your processors for the virtual machine. I recommend selecting the processor of more than 50%.

the select number of cores

How to Install macOS Mojave on VMware on Windows

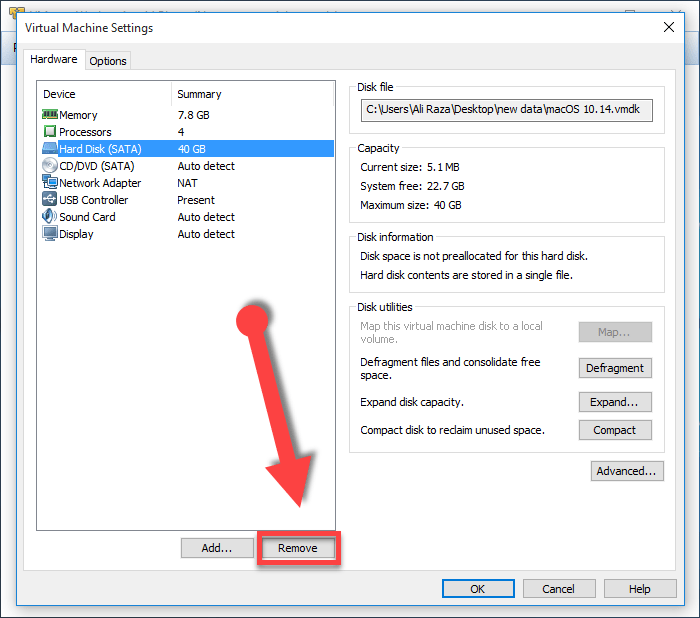

Step 16: Now go to Hard Disk Here you are going to select and configure the hard disk. However, First, you have to click on the Remove button at the bottom. It will remove the virtual hard disk which we have created while in the wizard.

click remove

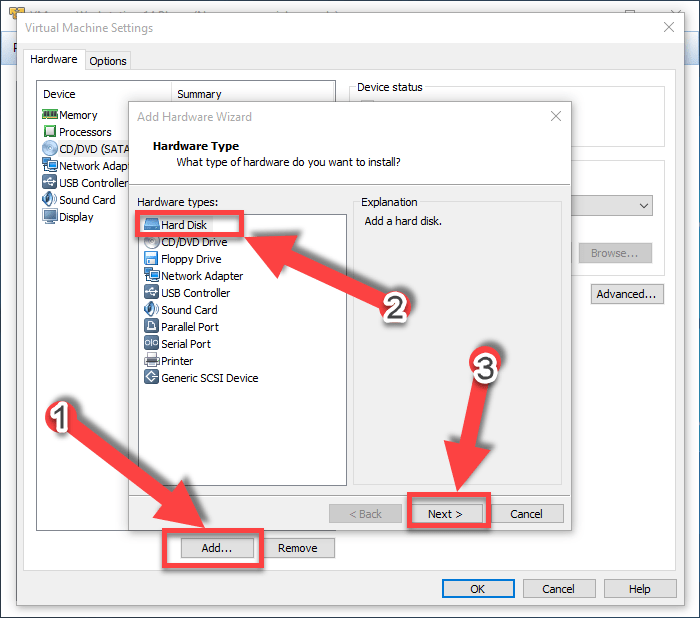

Step 17: Then click on add then click on the hard disk after that click on next.

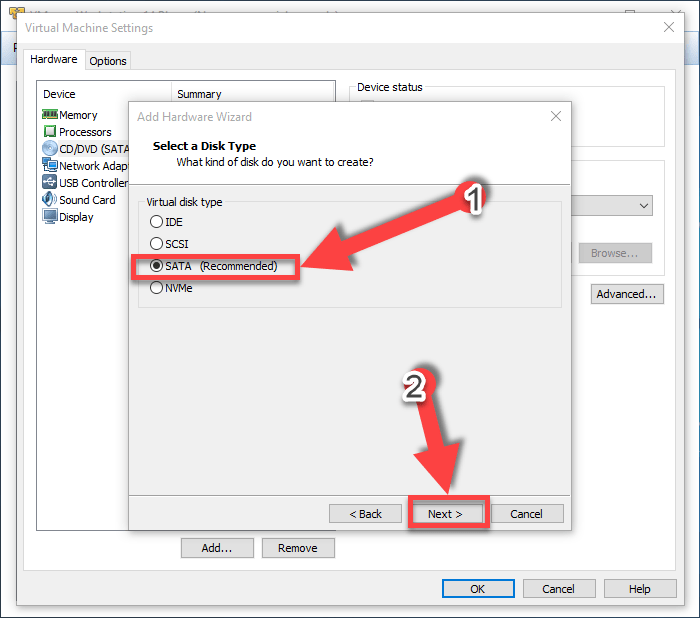

Step 18: You will get  Add Hardware Wizard.  Then Select SATA which is recommended. Then Press Next.

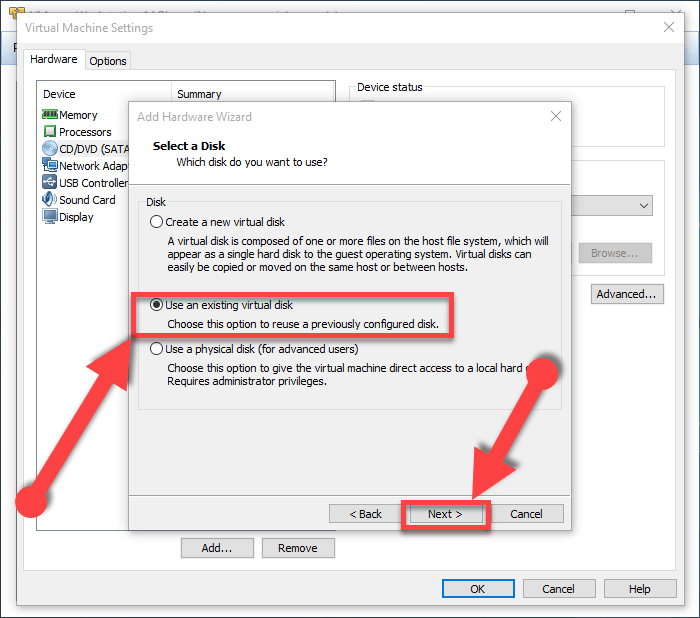

Step 19: In this step, you will ask about which disk do you want to use. You have to click on Use an existing virtual disk. Then press Next.

click next

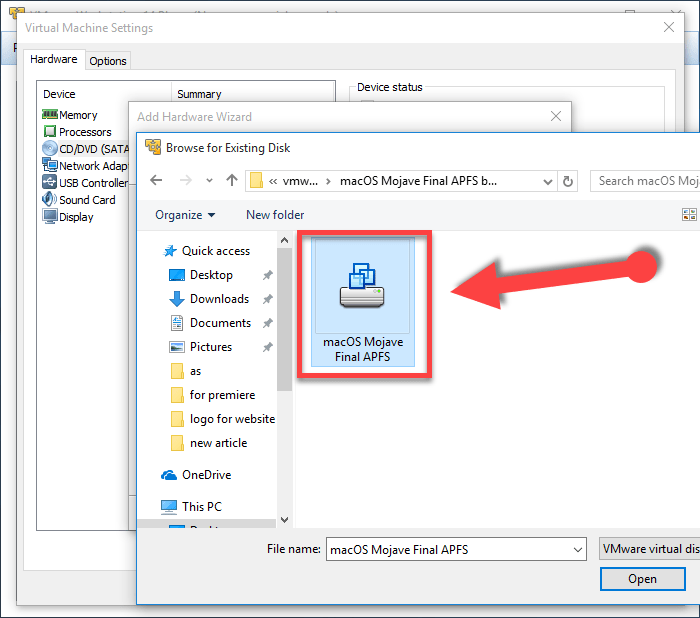

Step 20: Now, You have to click on Browse. And choose macOS Mojave. Which you have already downloaded. Then Click on Finish.

select macOS

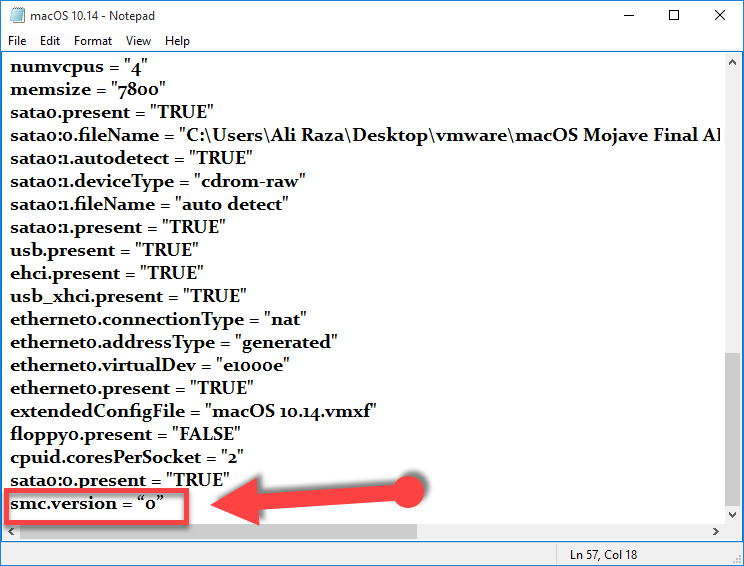

Step 21: Before, to install macOS Mojave on virtual machine WMware. You need one last tweaking too. For that, you have to edit the VMX file. First, you have to open the macOS 10.14 folder where you have stored the files. f you did not specify its location, look in Documents\virtual machines\.

Right click on the VMX file and choose Open With. Choose Move Apps. From the list of apps that will be seen, choose NotePad and Press Enter.

The bottom of the file you have to add the code from below.

smc.version = “0”

You have to press Ctrl + S to Save the document.

Install macOS Mojave 10.14 on VMware

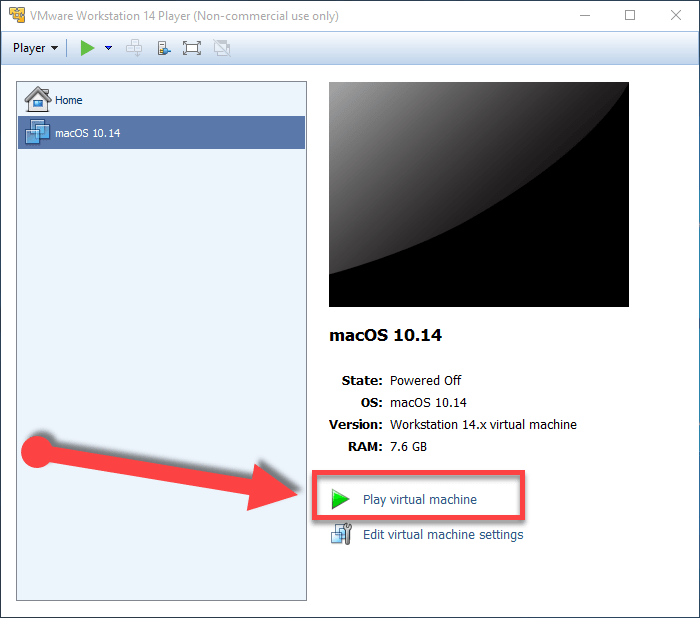

Step 1:  First of all, open VMware player. A further click on play virtual machine. Then you will see the Apple logo with a black screen will appear. It means you are going in the right direction.

play virtual machine

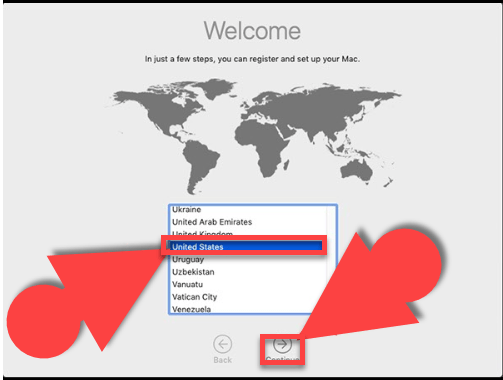

Step 2: The Welcome Screen will display. Here you are going to register and set up your Mac. Therefore you have to click on Country and click Continue.

welcome screen

Step 3: In the next screen will ask you about to Choose a keyboard layout. The select U.S and click on Continue.

click continue

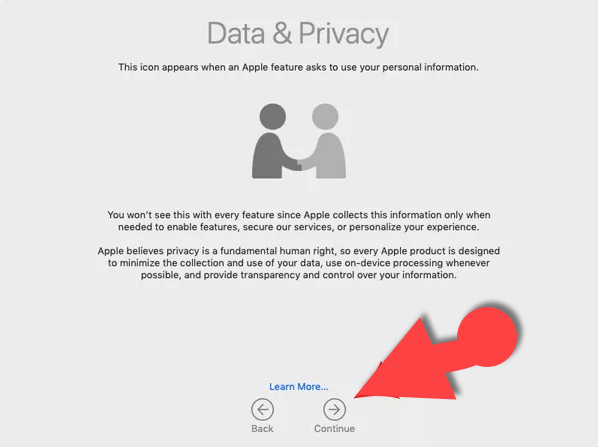

Step 4: After that, you will get new screen Data and privacy. Read that carefully and click on the continue button.

data & privacy

How to Install macOS Mojave 10.14 on VMware on Windows 10

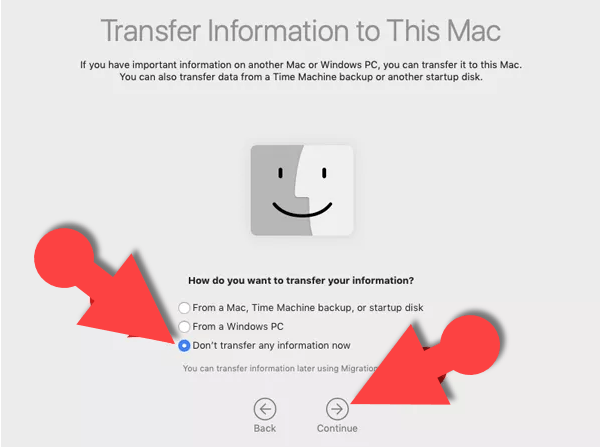

Step 5: After that, you will be asked about transfer information to this mac.  Check the box on Don’t transfer any information now. and click on continue button.

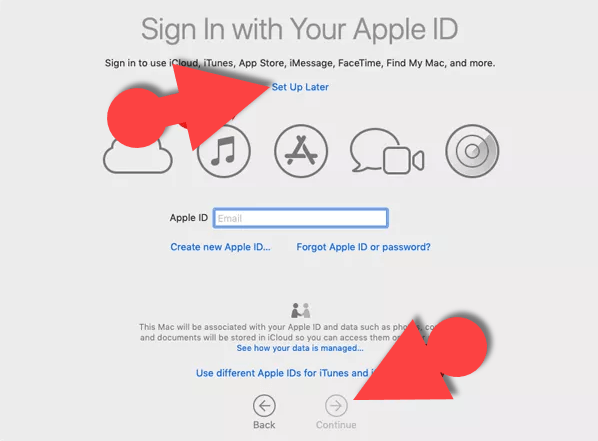

Step 6: At this step, it will ask you about your Apple ID. As you know that with the help ID you can use many features of macOS. Therefore, if you have any apple ID enter it. But, for you, I will select Set UP Later and click on Continue.

click sign up later

Step 7: So, it asks about terms and condition. Just click on the agreement on the option

terms and condition

Step 8: Create a computer account simply give your name and password and the hint of the password. Then click on the continue.

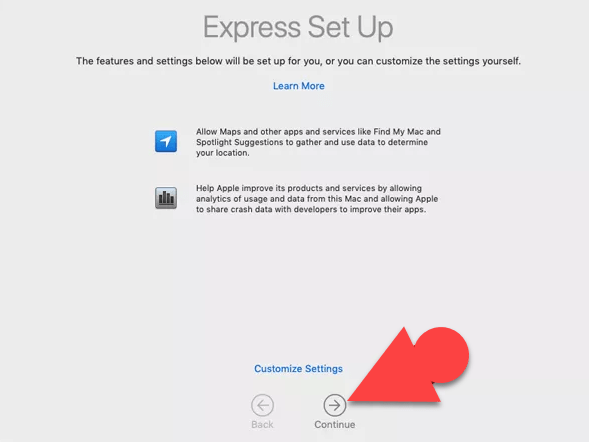

Step 9: on the page of Express Set, Up just click on Continue

express set up

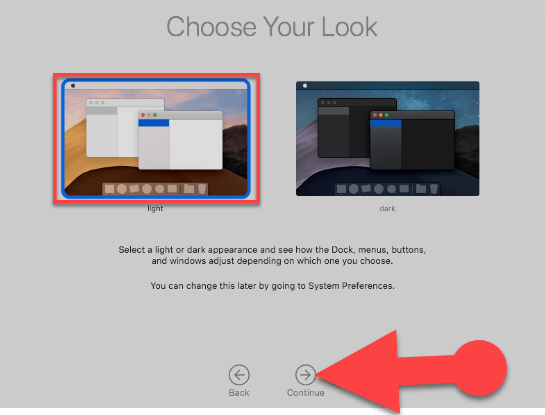

Step 10: Here you will ask about Choose the Look your macOS 10.14 Mojave. There are two variations. The first one is light. The second one is the Dark version. Select the one which you want. Therefore, I select the light one.

select light one

How to Install macOS Mojave on VMware on Windows

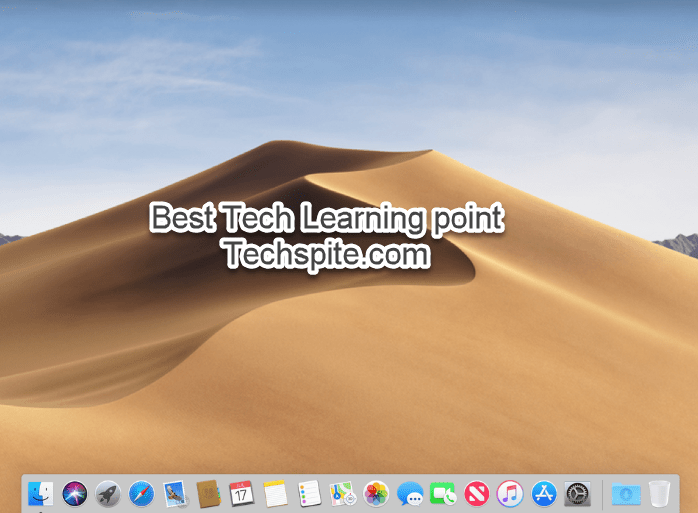

Step 11: Congratulation! You have done the best. Now at this screen, it will be setting up your Mac. It will take some time for configuration. Then you will see your macOS 10.14 Mojave for the first time.

Wallpaper of MacOS Mojave

How to Install macOS Mojave on VMware on Windows


Therefore it was about macOMojaveve. I hope everything works perfectly. But there is the possibility of any error or troubleshoot. Therefore, for any problem. You have to write in the comment box below. Daily visit our website for the latest tech update.

If you like it then share it with your friends and families. Thanks for visiting.
